Product study

A wall bracket for a cordless vacuum, modelled around the tube it has to hold, exported for printing, then printed and fitted.

Role
Measuring, Modelling, Printing, Fitting
Disciplines
Product modelling, 3D printing
Kind
Personal project

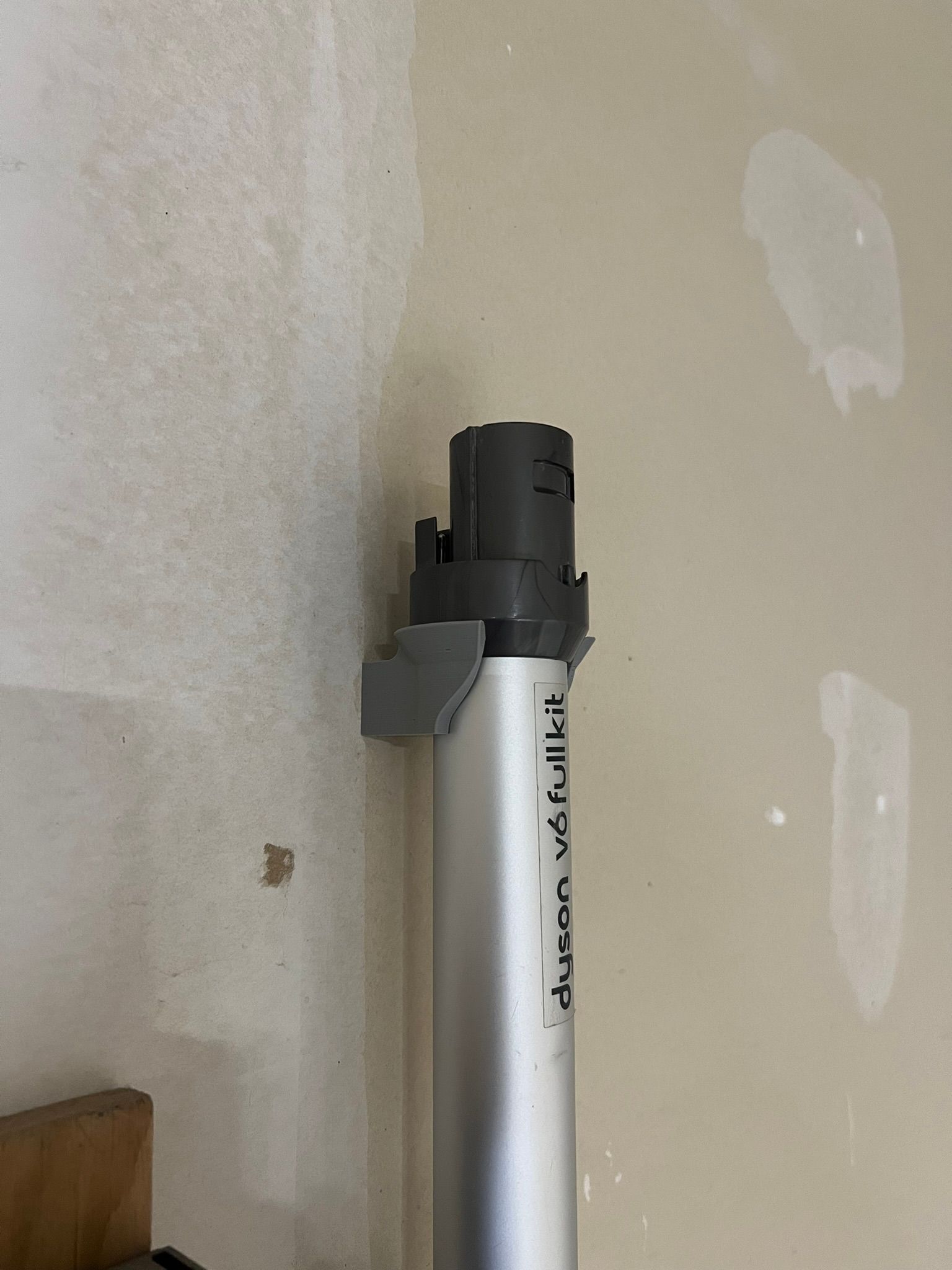

A photograph of a grey printed bracket screwed to an unfinished plaster wall, cradling the aluminium tube of a cordless vacuum just below its dark grey collar. A printed label on the tube reads dyson v6 full kit.
The printed part, holding the tube it was drawn around.

The study

Drawn around the thing it has to hold.

A wall bracket for a cordless vacuum, modelled from the tube and the collar it sits under rather than from a guess at the shape. The collar is a C rather than a ring so the tube pushes in from the front, and a relief cut through its wall gives the arms something to flex against.

Two countersunk holes take the weight into the wall. The lip round the collar is there to stop the part splitting along its print lines.

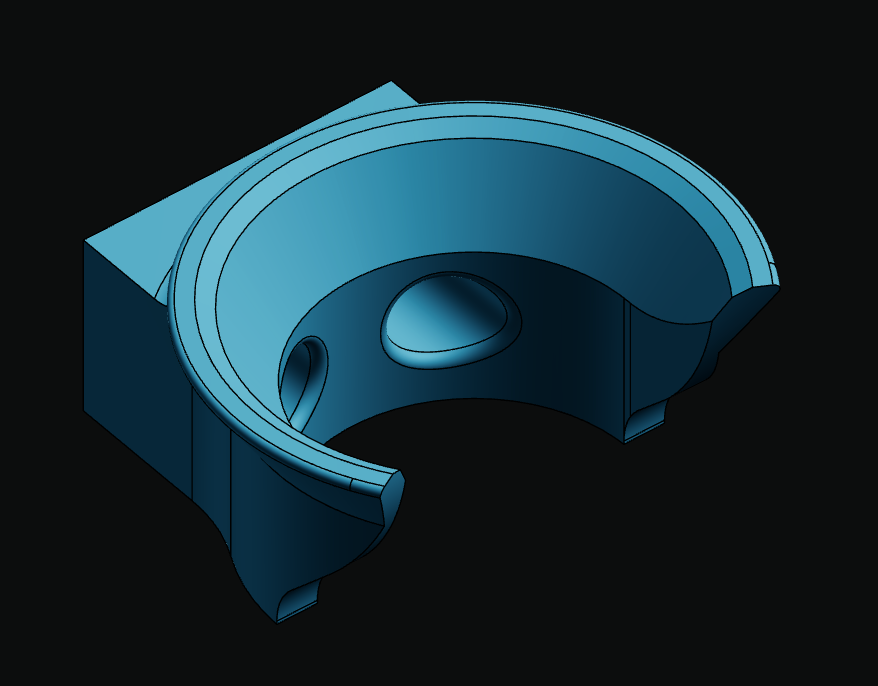

A shaded three quarter view of the bracket in a modelling window, blue on black: a C shaped collar with a raised lip running round it, a flat back plate behind, a countersunk screw hole, and a teardrop shaped relief cut through the wall of the collar.
The collar from behind, with the relief that lets it flex.

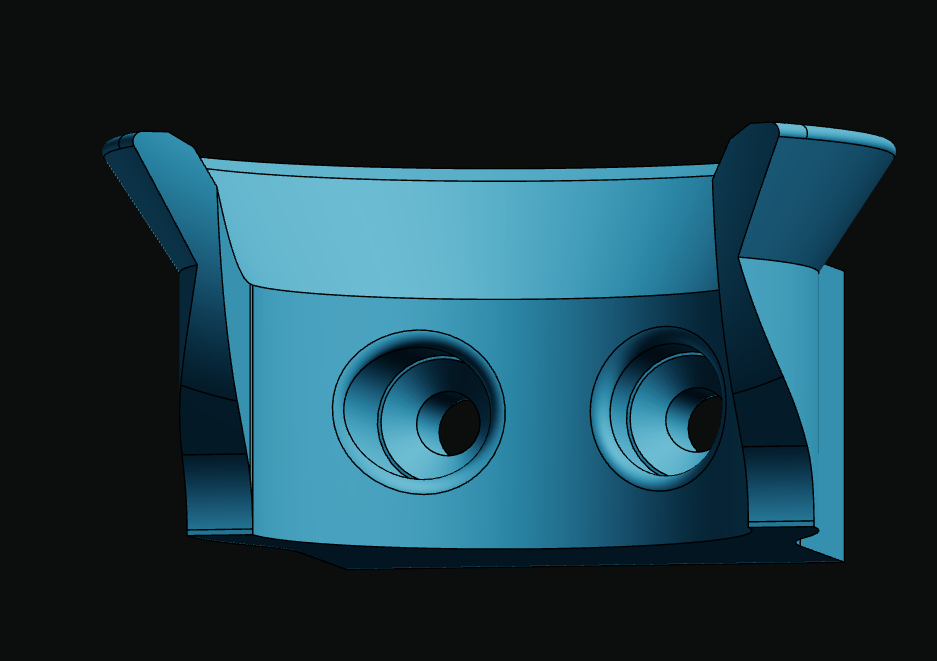

A shaded front view of the same bracket, blue on black: two countersunk screw holes through the curved back plate and the two flared arms of the collar standing out at either side.
The front, and the two fixings that carry the load.

My contribution

Measured, modelled, printed, fitted.

I measured the tube, drew the part, exported it, printed it and put it on the wall.

A study like this is only finished once the thing is carrying weight. Everything before that is a drawing of a bracket.

What I made

  • A bracket modelled around the tube and collar it has to hold
  • An STL exported ready to print
  • The printed part, fitted to the wall and in use

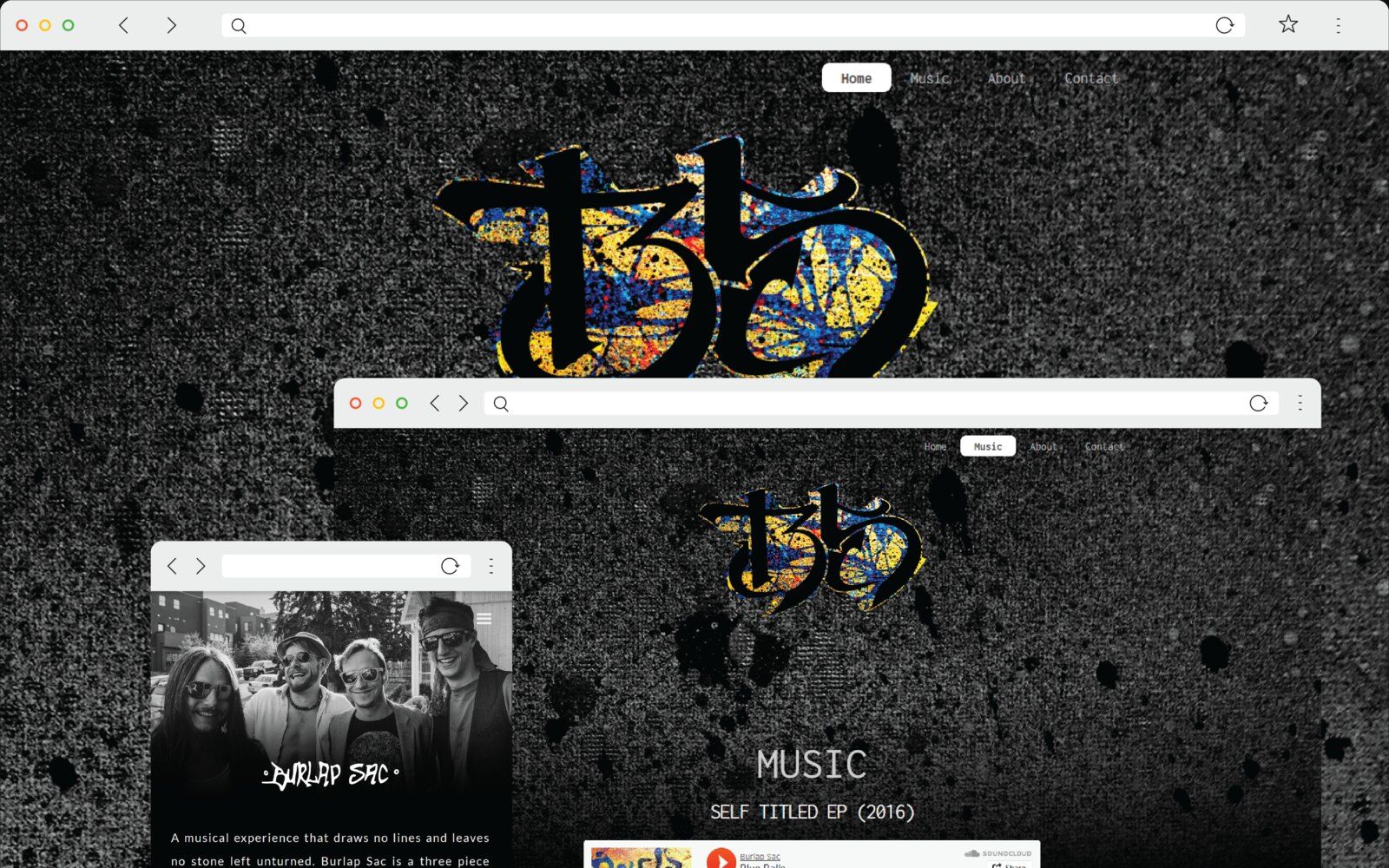

A browser window on the Burlap Sac home page: a blue, yellow and red band mark set over black concrete texture, with Home, Music, About and Contact across the top, and two smaller frames overlapping it showing the music page and a photograph of the band.
